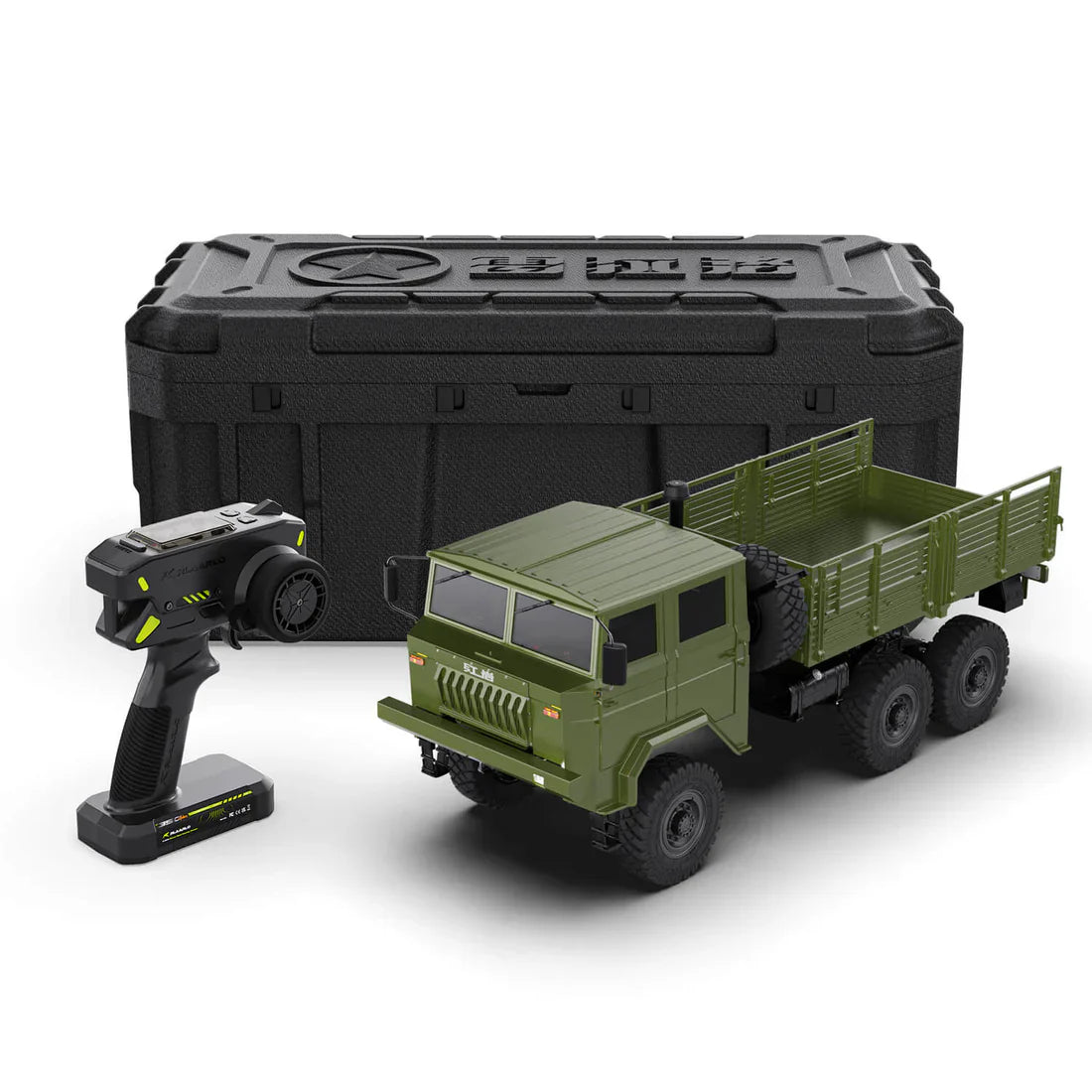

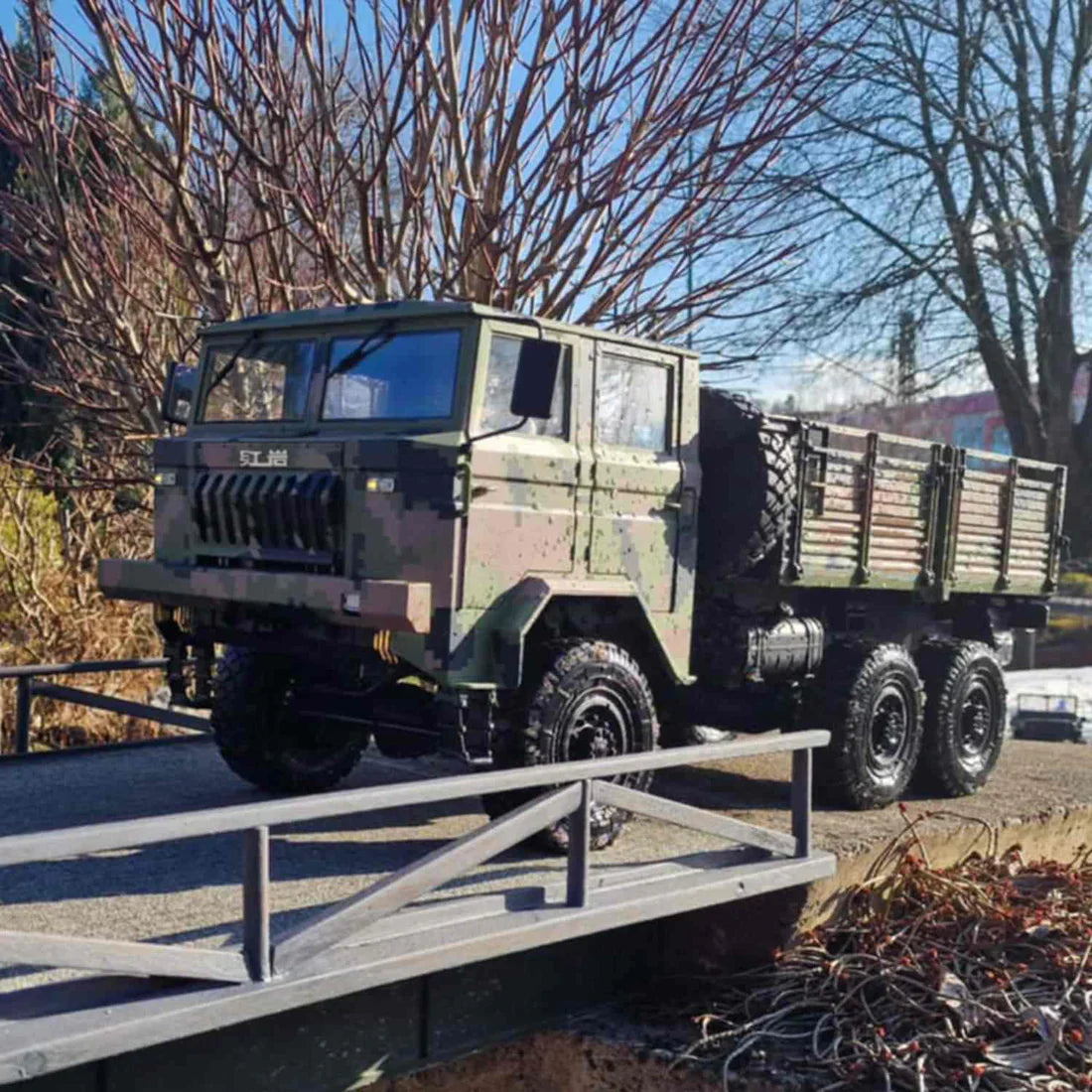

Rlaarlo 1/10 Scale RTR 6X6 Brushed RC Military Trucks HongYan HY6

Power remains stable with guaranteed endurance, catering to diverse enthusiast needs, delivering peak power output up to 6S.

Product Versions

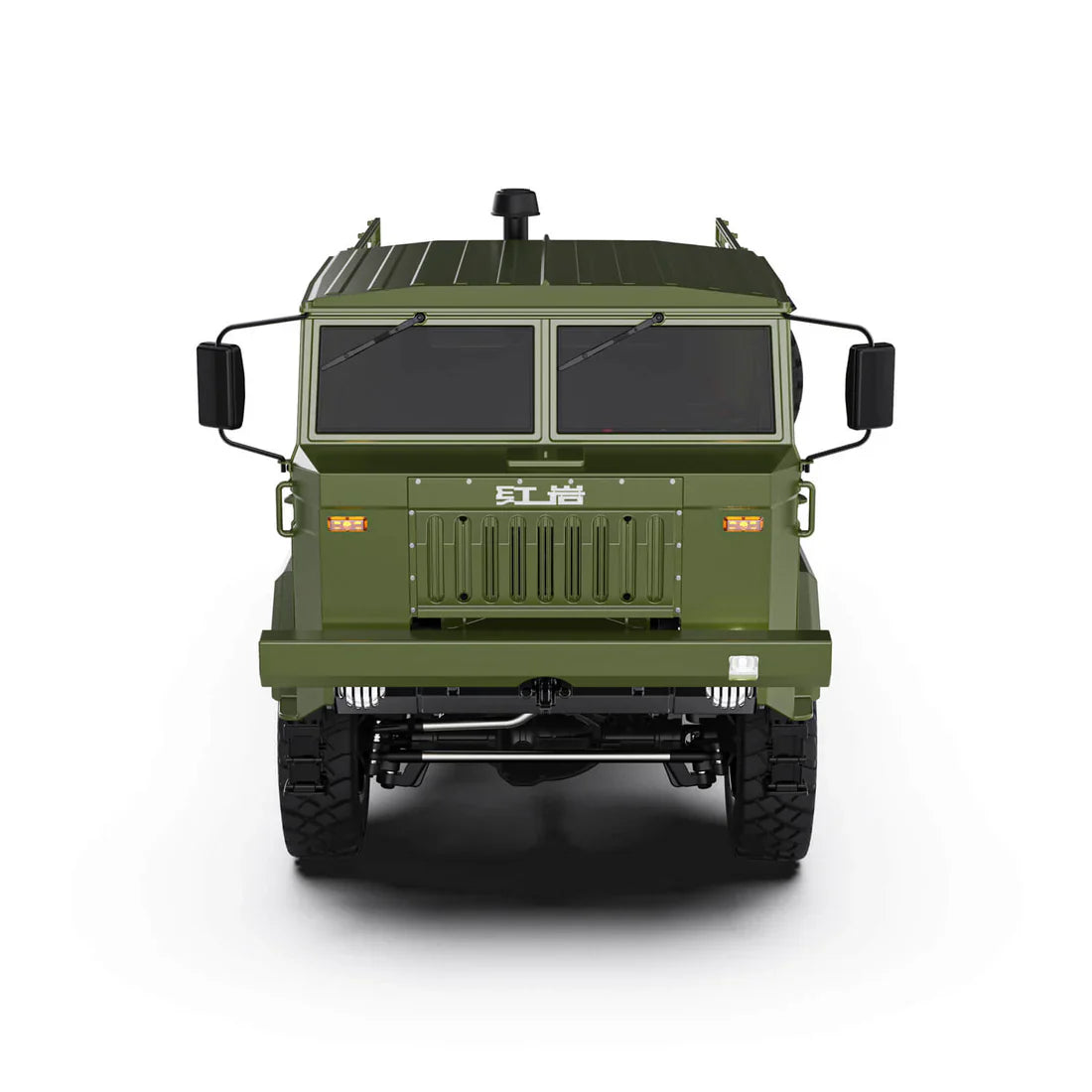

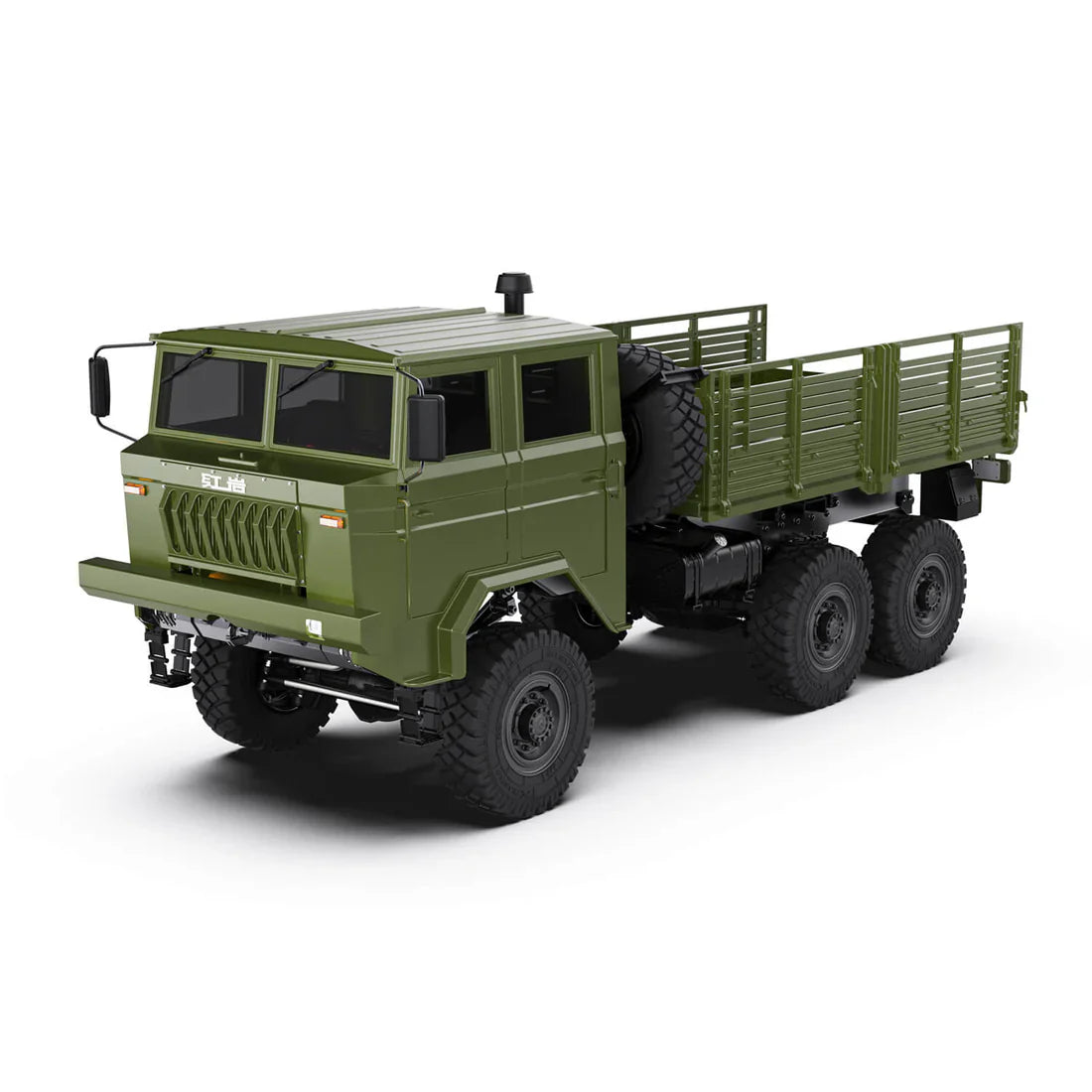

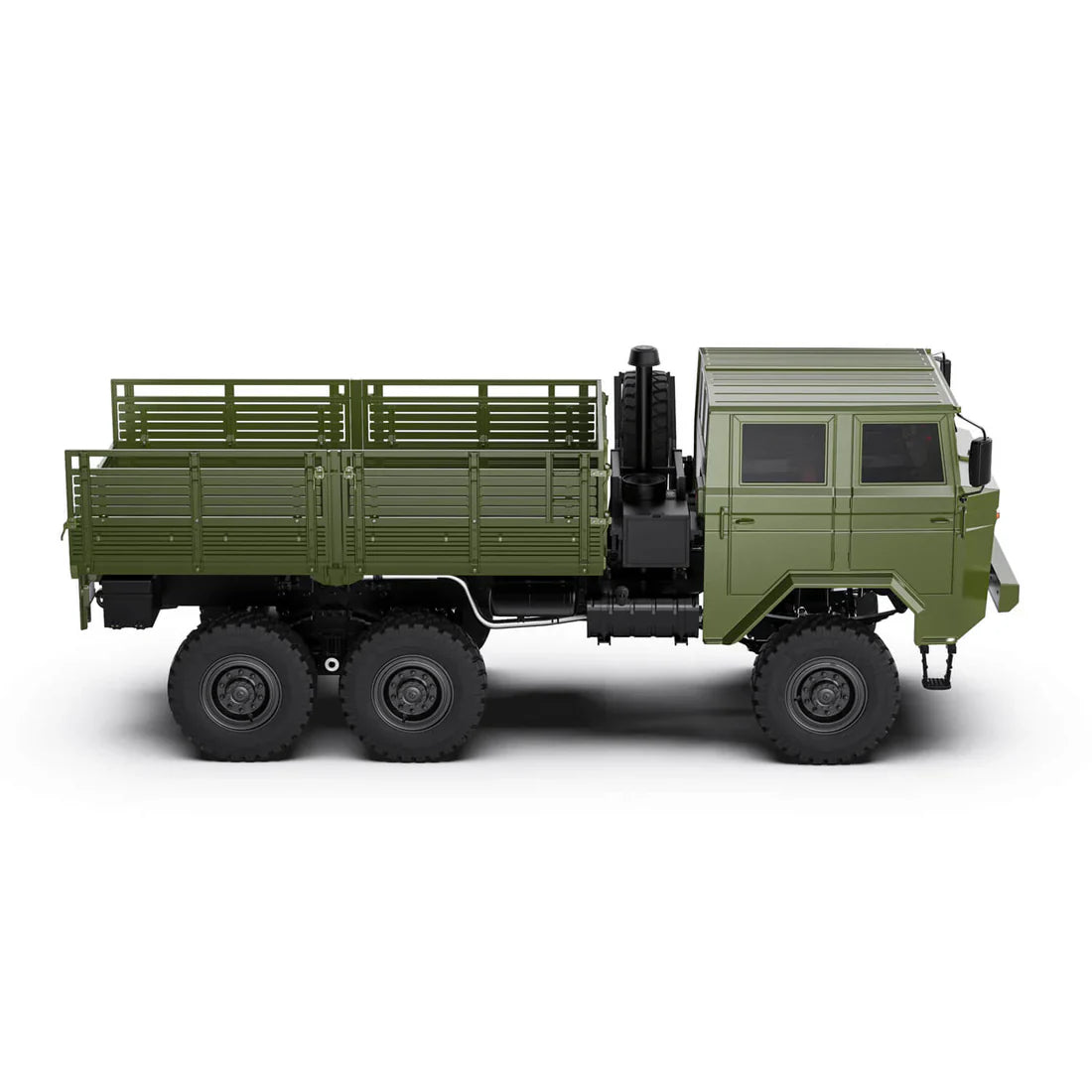

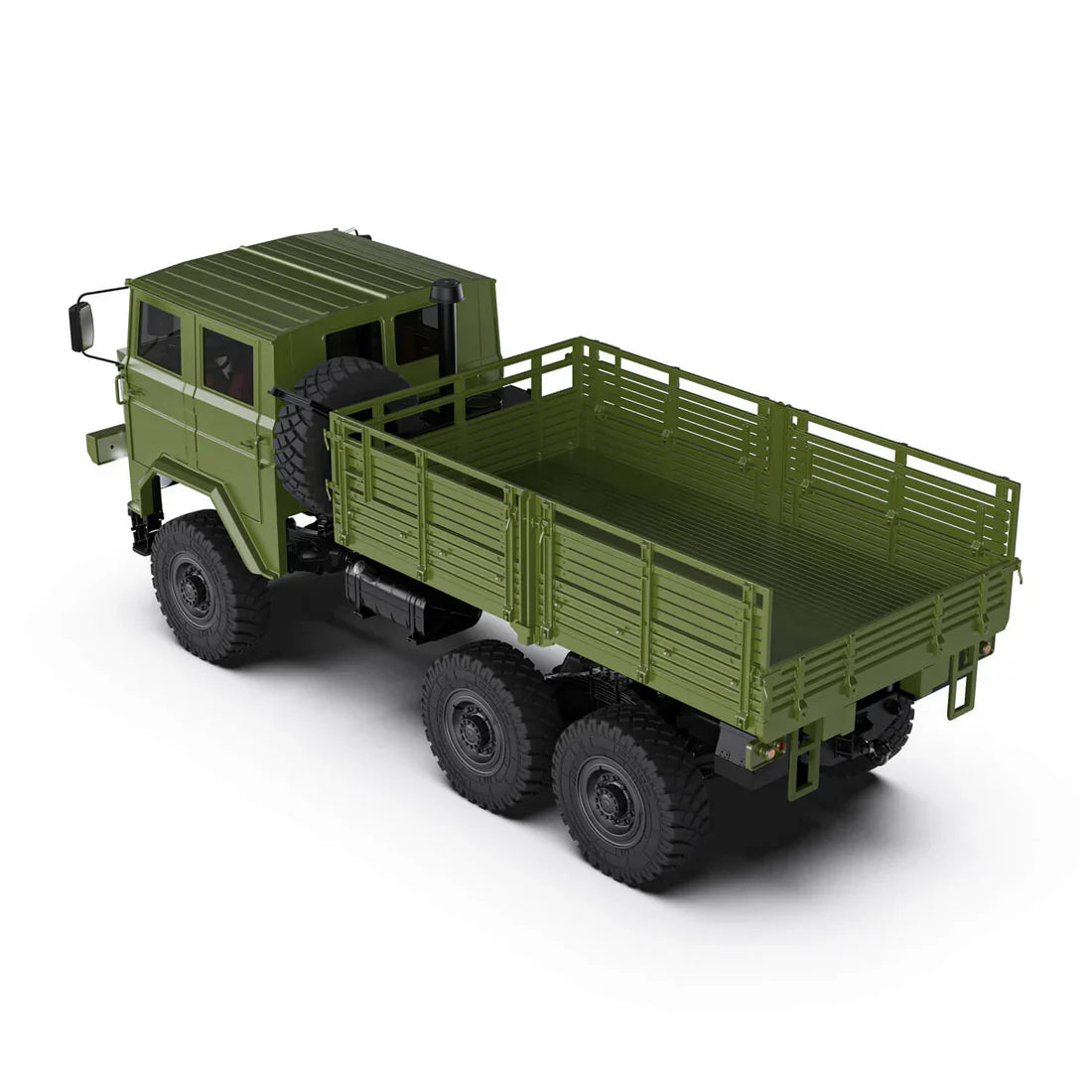

• Army Green: Brushed Version/Brushless Version

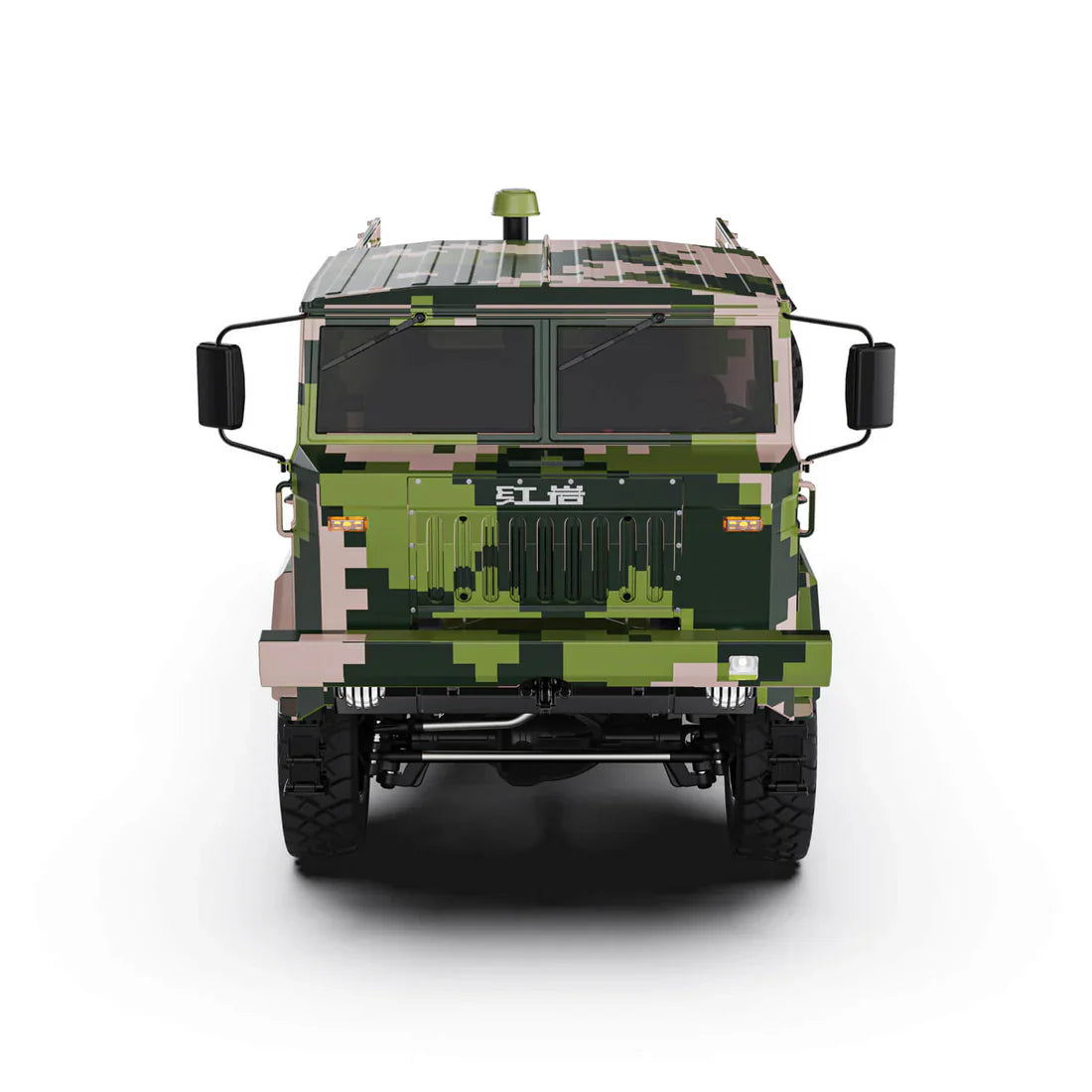

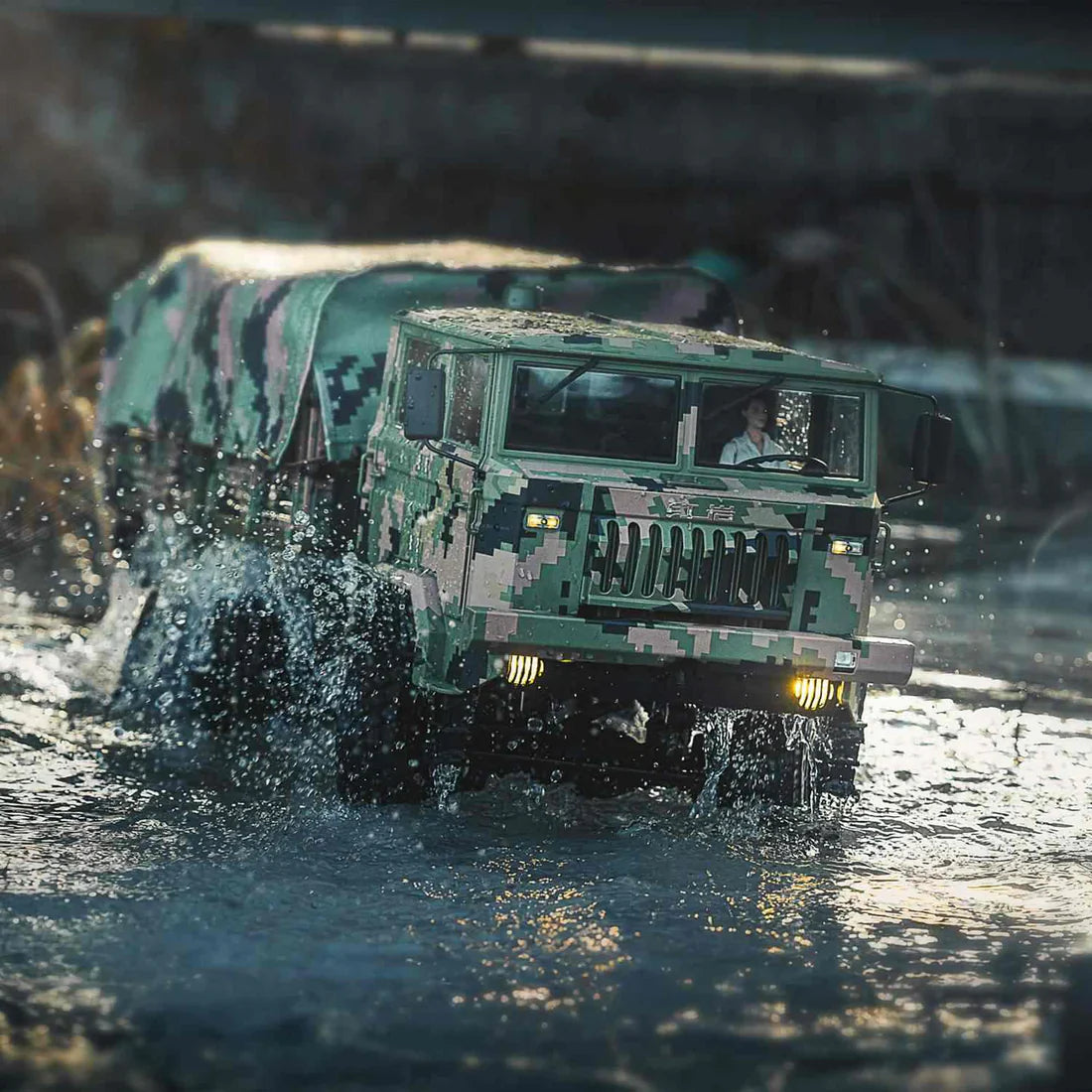

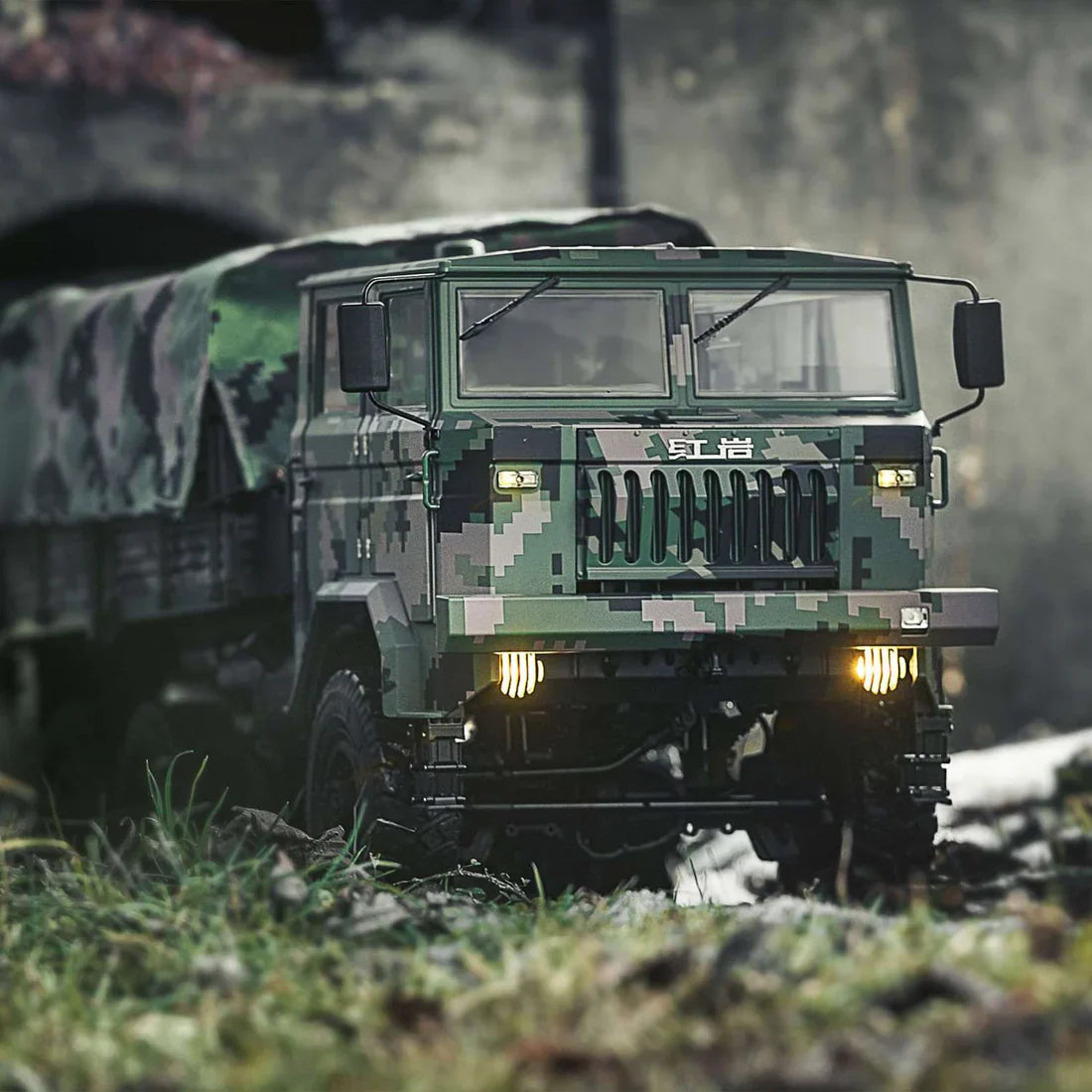

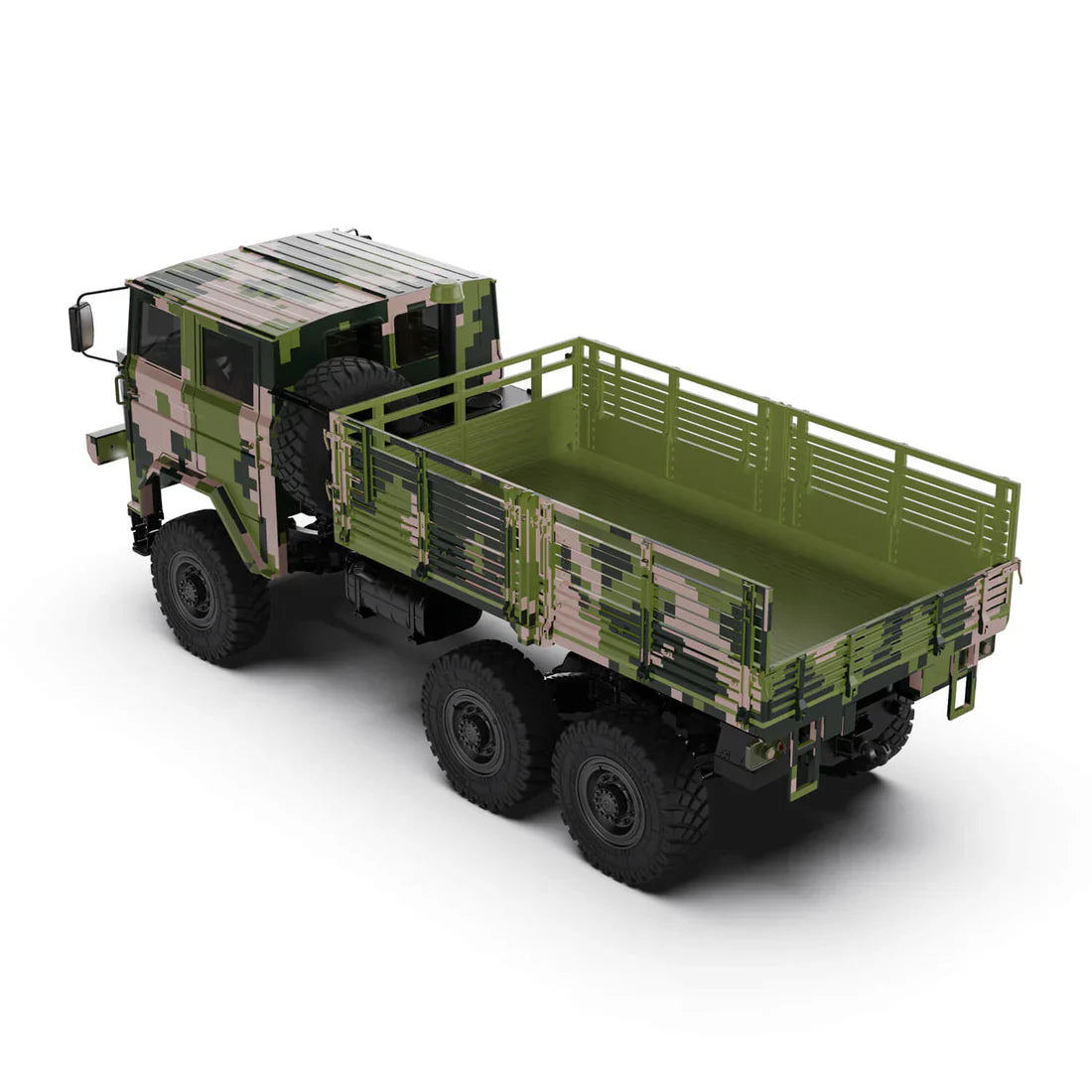

• Jungle Digital Camouflage: Brushed Version/Brushless Version

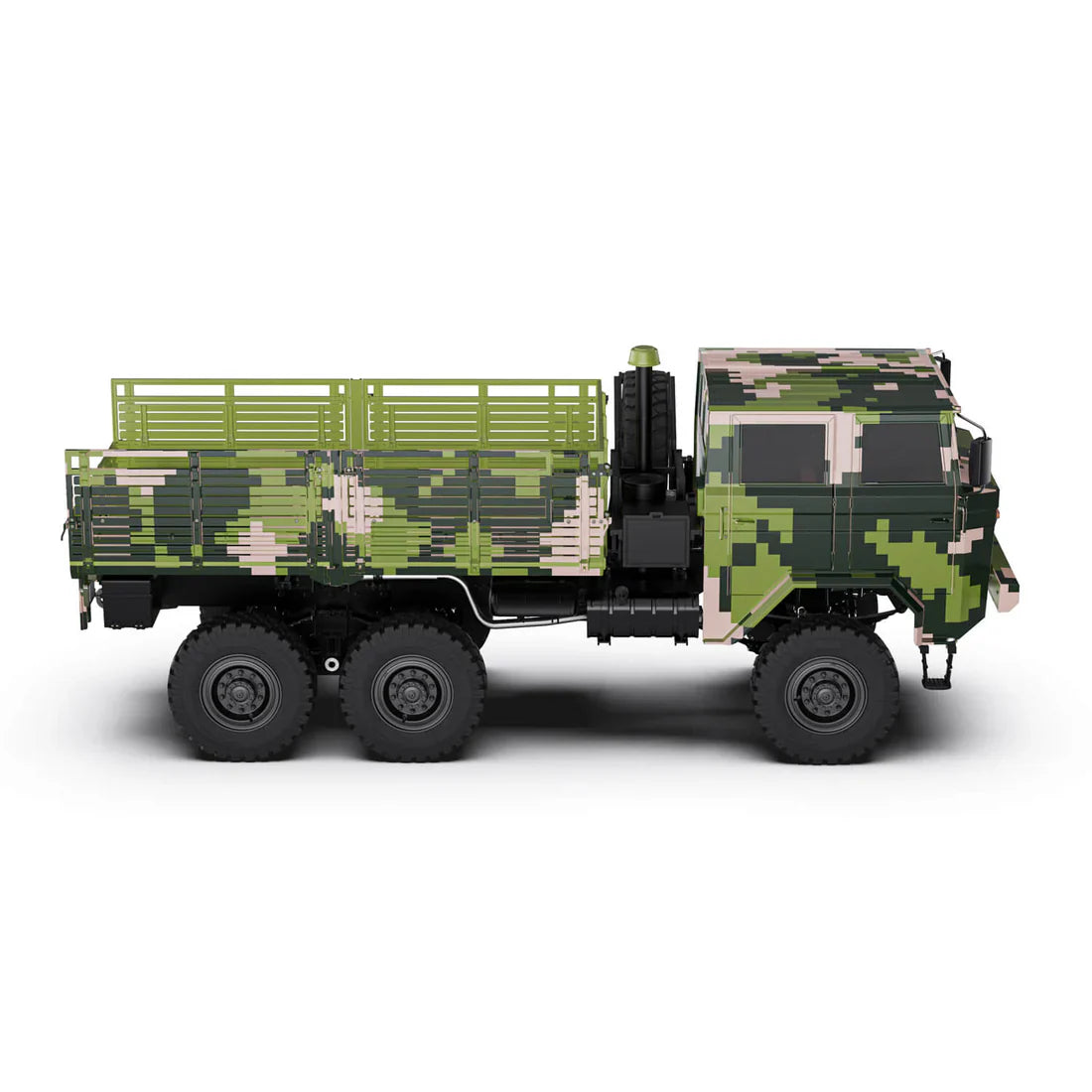

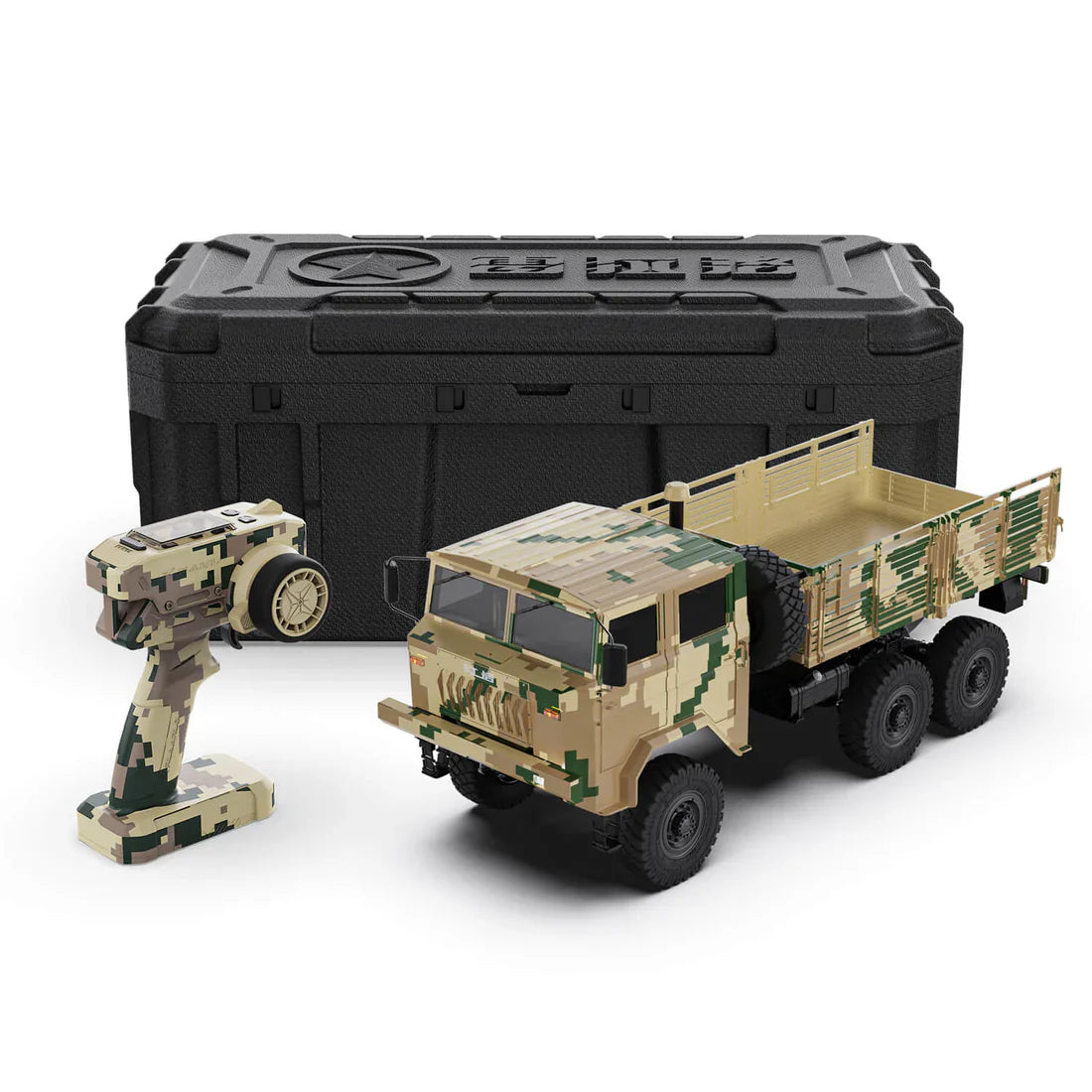

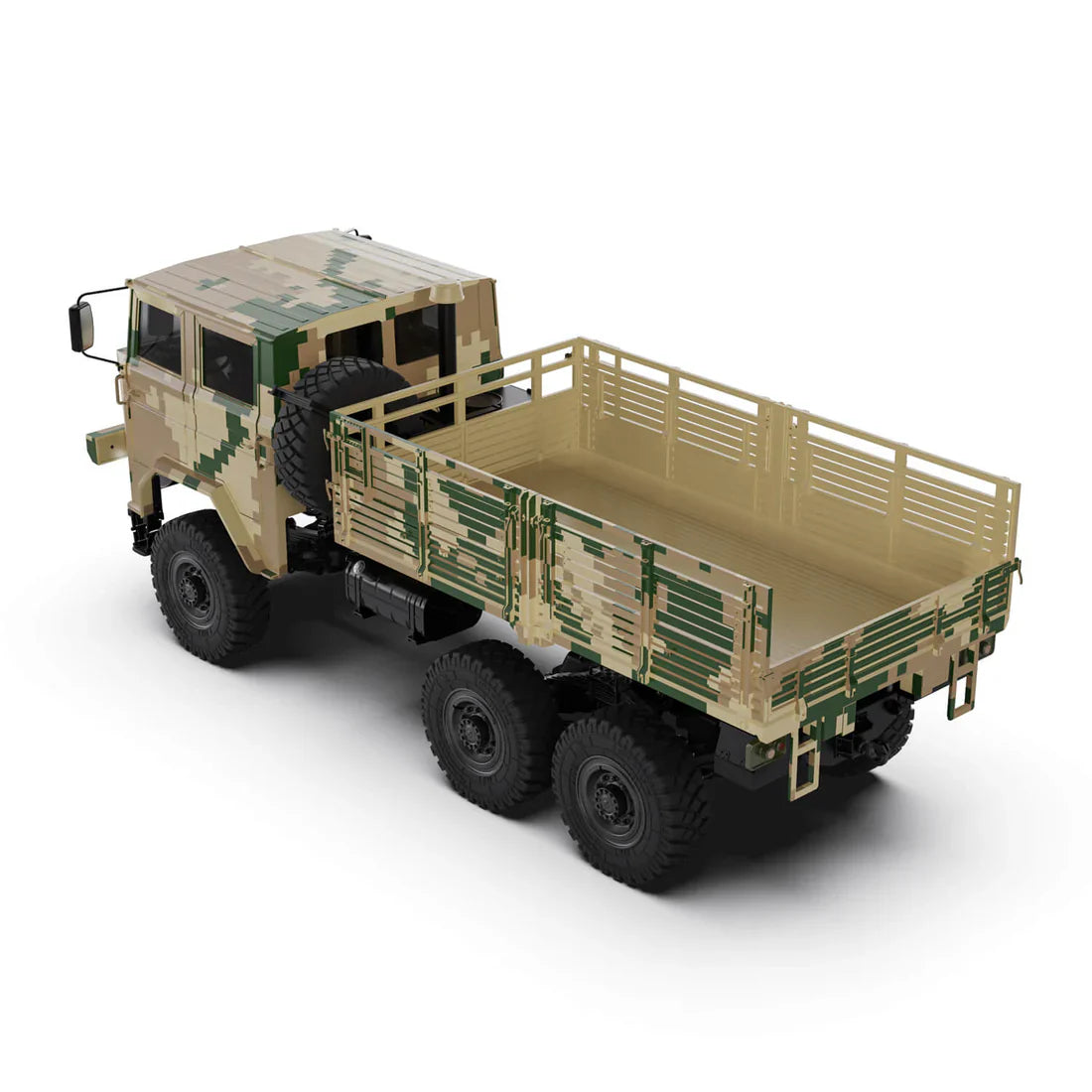

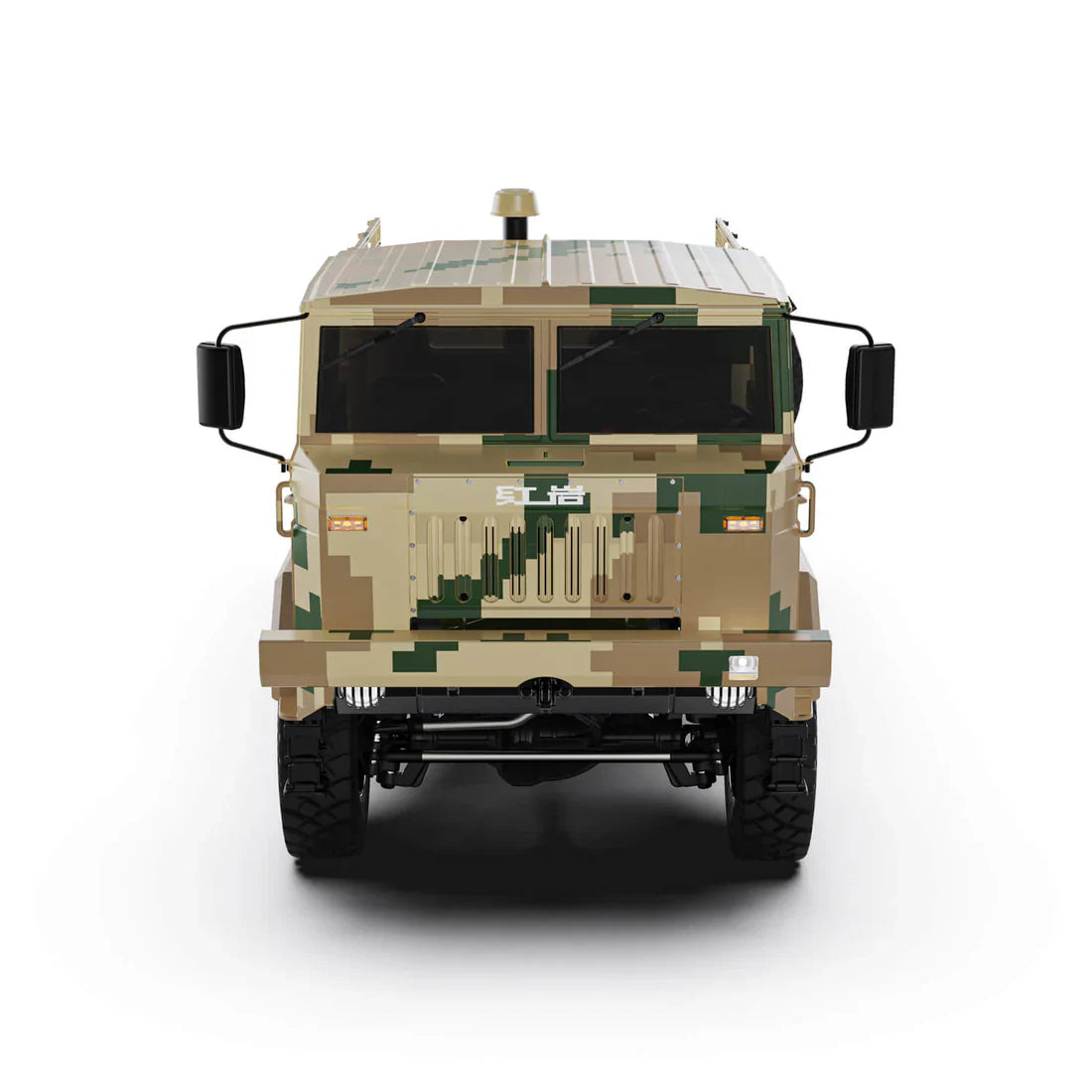

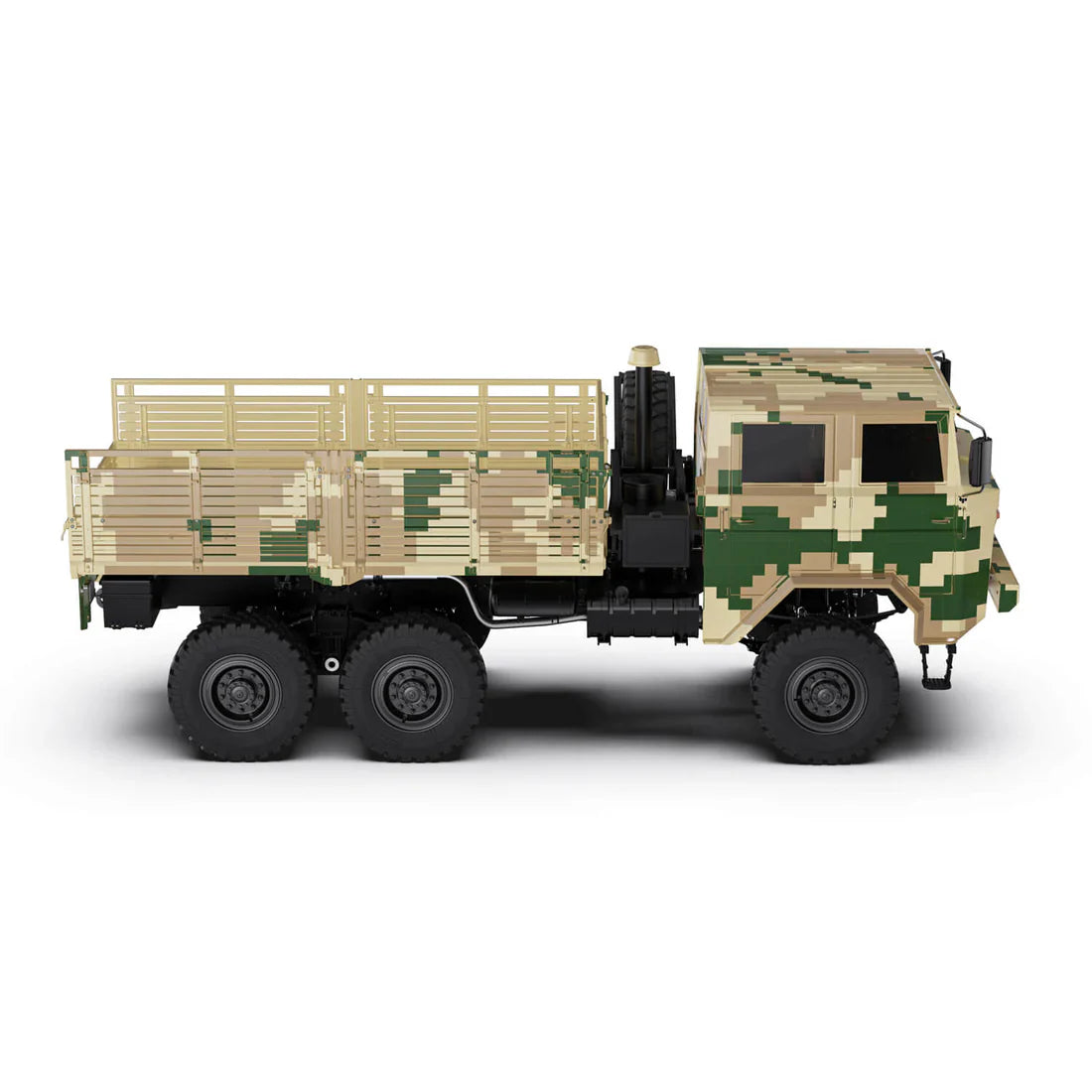

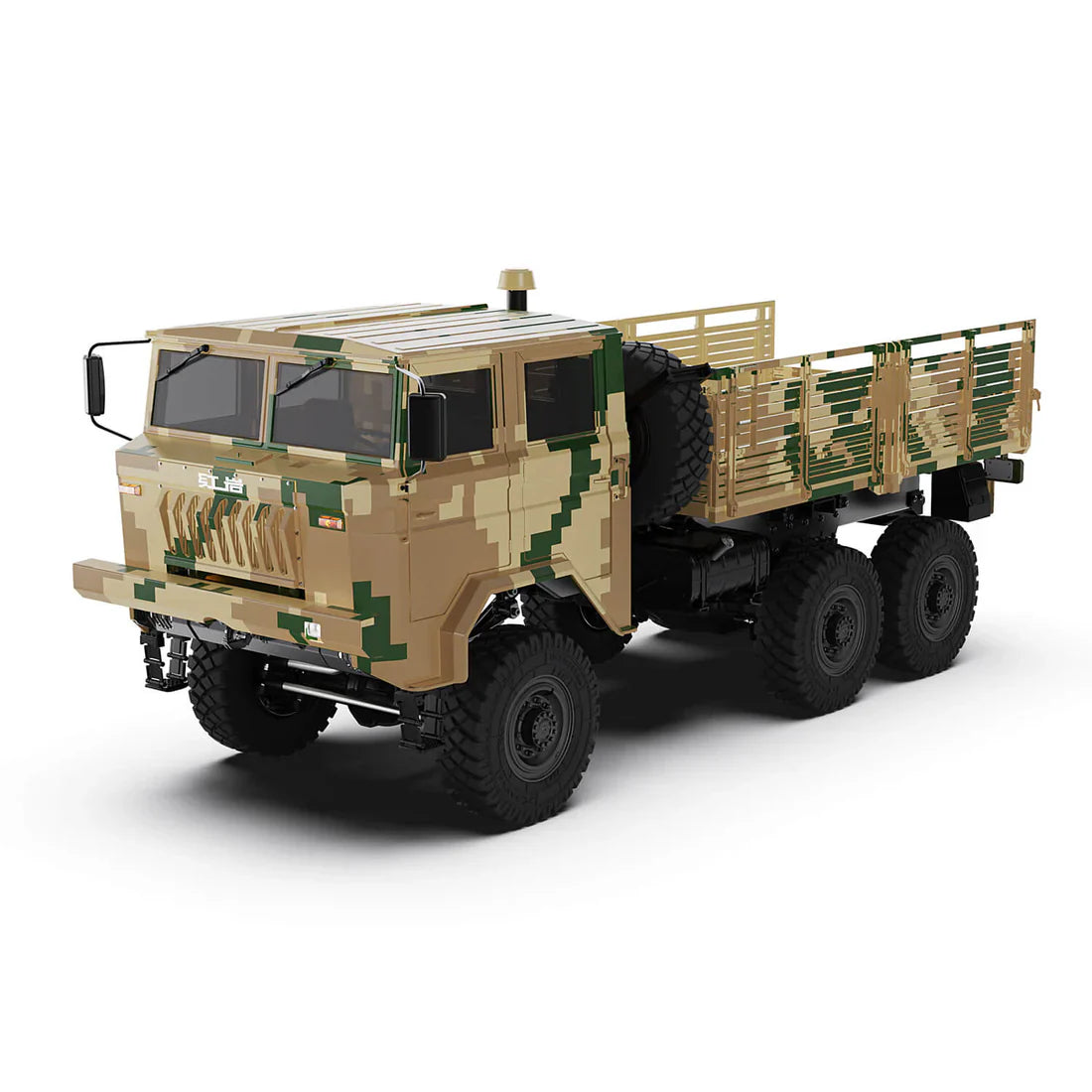

• Desert Digital Camouflage: Brushed Version/Brushless Version

Product Specifications

• Model: HY6 (HongYan）
• Proportion: 1/10

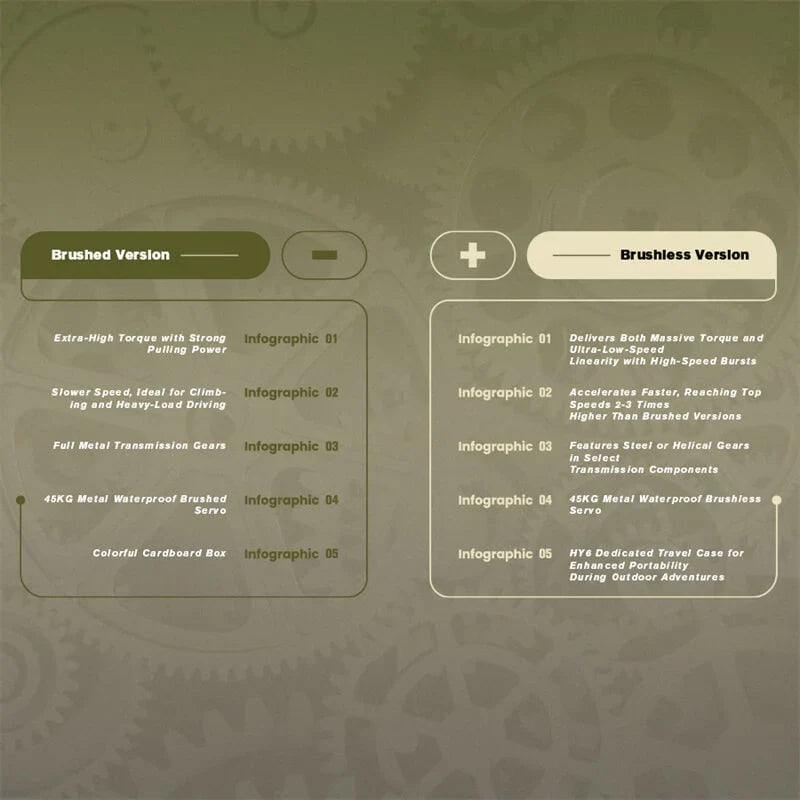

• Product Versions:
  Brushed Version/Brushless Version
• Body:ABS
• Battery Compartment: 165x50x32mm
• Speed:
  Brushed Version:8-16K M/H
  Brushless Version:21-42 KM/H
• Wheelbase: 493mm
• Length: 800mm
• Width: 321mm
• Height: 331mm
• Tire Size:Ø126mm*40mm
• Driving Mode: 6WD (Six-Wheel Drive with front Differential Lock)
• ESC:
  Brushed Version —140A Brushed ESC
  Brushless Version —140A FOC Brushless ESC
• Motor :
  Brushed Version —Brushed Motor 5280
  Brushless Version —4282 FOC Brushless Motor
• Steering Gear :
  Brushed Version —45KG metal waterproof brushed Servo
  Brushless Version —45KG metal waterproof Brushless Servo

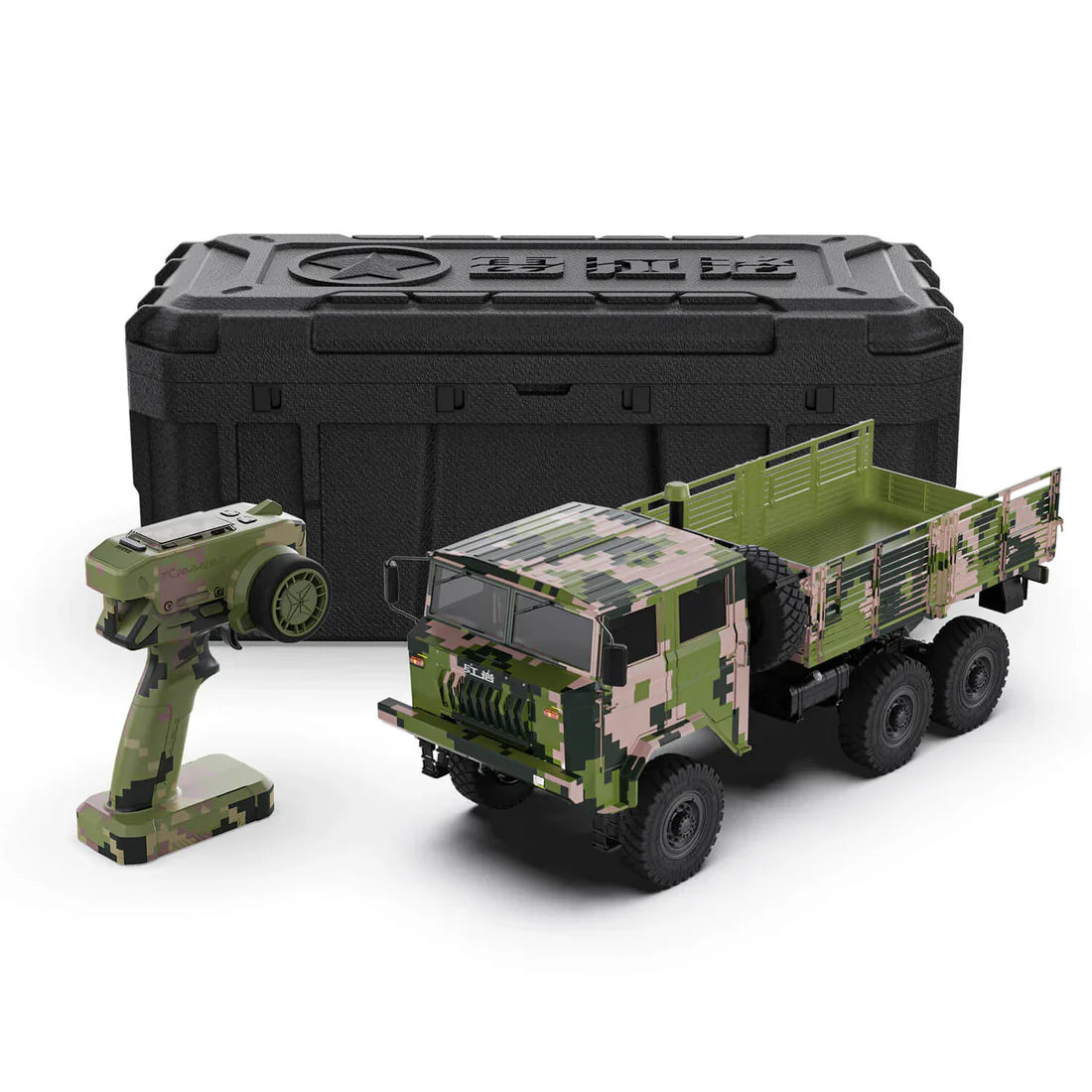

• Remote Control :2.4GHZ 6-Channel Tyrannosaurus Remote Control (Remote Control Distance Is About 350).
• Support Voltage: 6V
• Connecting Rod: 8mm Stainless Pull Rod

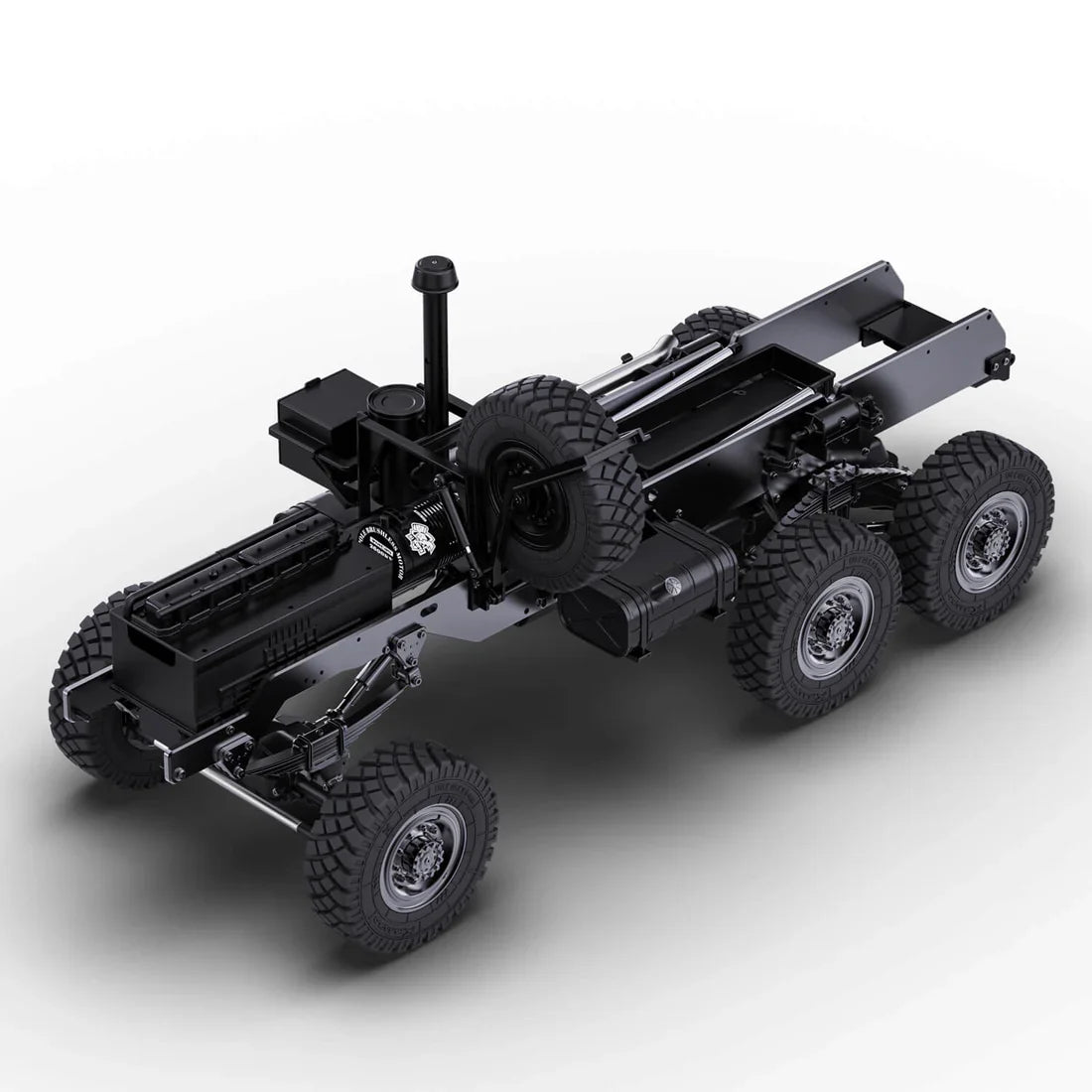

• Suspension Method:Leaf Spring Steel Plate Structure
• Automobile Beam: 6mm Thick High-Strength CNC Beam

What's in the box?

1. Instruction Manual*1

   2. Brand Decals*2

   3. L-shaped Hex Wrench 1.5mm*1

   4. L-shaped Hex Wrench 2.0mm*1

   5. L-shaped Hex Wrench 2.5mm*1

   6. Hex socket wrench*1

   7. 8.0mm socket*1

   8. 2.0mm Phillips screwdriver*1

HY6 Lighting Control Logic

1. All vehicle lights are off when the vehicle is started.

• Press the lighting control switch once to turn on the low beam headlights and instrument panel lights.while simultaneously illuminating the brake lights (high brightness during braking).
• Press again to turn on the high beam headlights.
• Press again to turn on the anti-aircraft lights (activating the anti-aircraff lights simuttaneously turns off all other lights).
• Press again to turn off all vehicle lights.

2. Quickly press twice to turn on the overtaking lights;

3. Quickly press three times to turn on the hazard lights;

4. Quickly press four times to turn the integrated turn signal on/off;

5. Quickly press five times to turn on/off the extended DIY ight circuit (DIY 1 and 2 lights can be turned on/off simultaneously).

6. Function of the small button on the light control circuit board: When the left and right lights are reversed, press once while powered on. When the front and rear lights are reversed, press twice quickly while powered on.

HY6 Lighting Control System

• HY6 lighting system features 10 lighting modes, all controllable via buttons and automatic linking.
• It is compatible with multiple third-party remote controllers.
