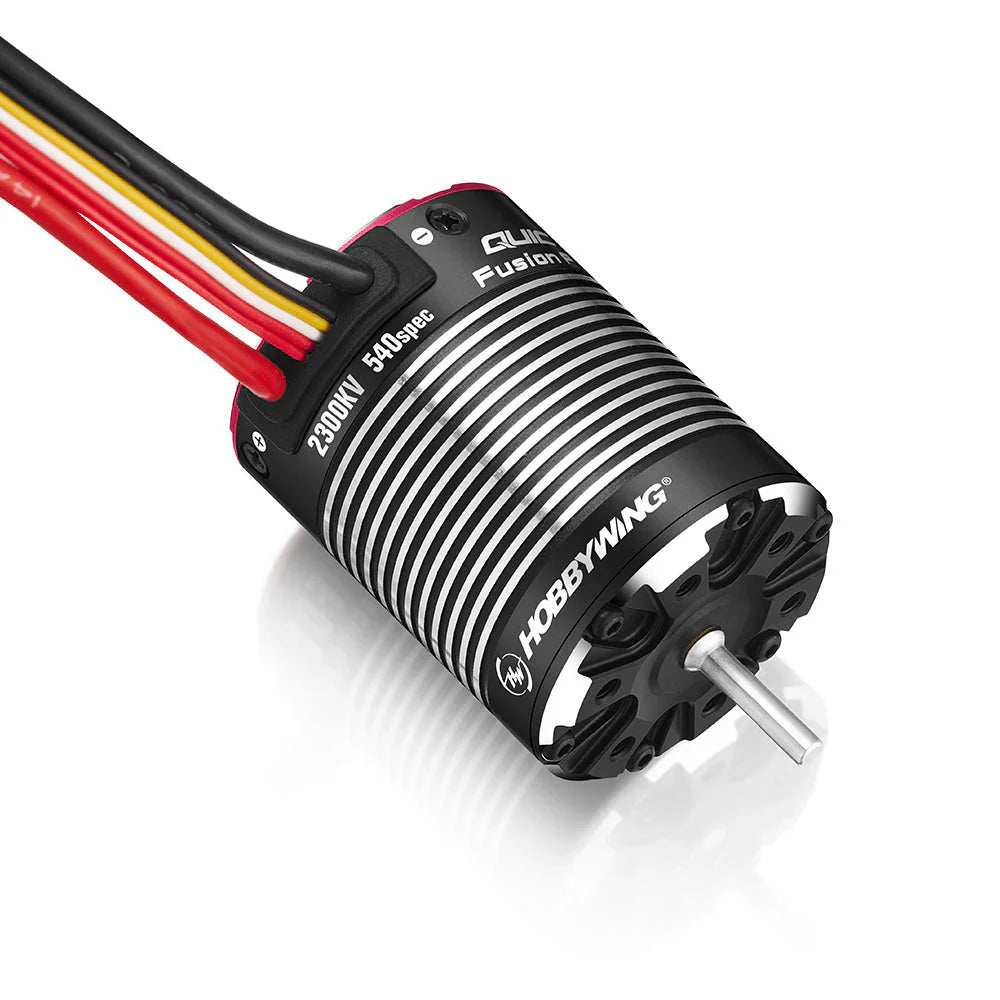

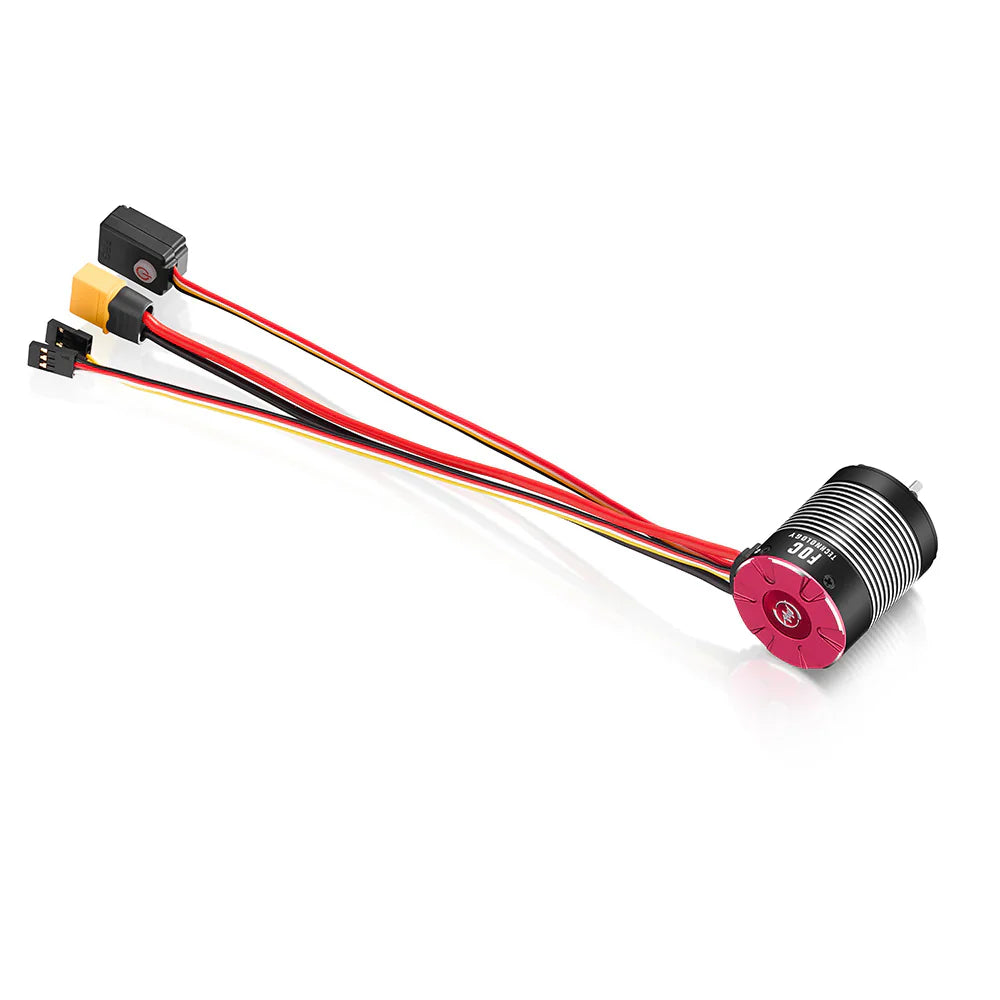

HobbyWing QUICRUN Fusion Pro ELITE 2in1 FOC System for 1/10 crawlers

Manual

OVERVIEW

• Featuring an ultra-short integrated design with a length of just 48.5 mm, this motor is 9.5 mm shorter than the Pro Standard version and 1.3 mm shorter than the AXE 540. It fits most 10th-scale crawler chassis on the market, allowing for cleaner, more streamlined wiring layouts.
• FOC (Field-Oriented Control) Driving Mode: The FOC driving mode enhances the power system of rock crawlers, delivering strong low-speed torque. This provides superior performance compared to standard brushless setups and is even preferred over brushed setups for overall feel.
• The system offers high efficiency, reduced heat, and extended runtime, with the motor running quietly and smoothly.
• The entire system has an IP67 protection grade, enabling operation in all conditions.
• Intelligent torque output and speed closed-loop control ensure precise handling.
• Active drag brake force adjustment provides superior holding power on inclines.
• The strong built-in switch-mode BEC supports continuous/peak current up to 5A and adjustable voltages of 6V, 7.4V, or 8.4V, capable of driving high-torque and high-voltage servos.
• Real-time parameter adjustments are possible using the transmitter’s AUX channel.
• Multiple protection functions include battery low-voltage protection, overheat protection, throttle loss protection, and lock-up protection.
• The system supports LED and LCD Program Box Pro/G2 for convenient ESC parameter settings..

Spec

Parameter schedule:

What's in the box

• 1x FOC motor w/ built-in ESC
• Factory-installed XT60 plug
• 1x Decal and Manual
• 1x Heatshrink kit, double-sided tape, and zip ties.

AUX External Control, Channel for Real-time Parameter Adjustment
